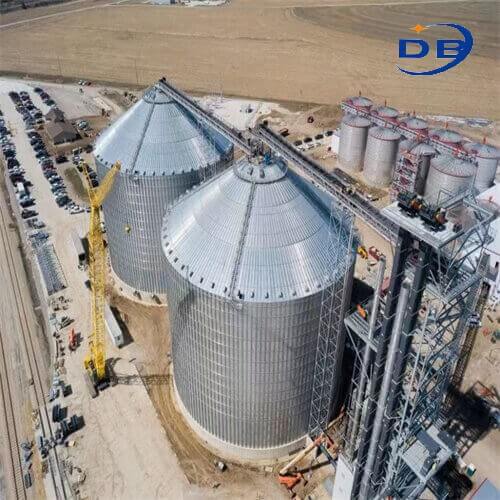

Flat Bottom silo

Flat Bottom Silo Information

Dingbao full line of grain silos and accessories are customized to fit your needs and maximize your profitability. Offering wide range of products, Dingbao manufactures different model flat bottom silos, which diameters vary from 4.58m to 32 m and capacity up to 23000 m³.

Detailed information

1.Silo Roof

DINGBAO silo roof angle generally design 25 degree to 30 degree, which the design can assure the silo tress is best,maximum enasure the silo structure and safety. The silo roof design strongly interconnects the structure of silo top and down ring beams,rasial ribs with top cover panels,make silo stand up silo load, silo top construction load, even the harshest environment of extreme snow load etc

2.Stiffeners

DINGBAO's high tension outside stiffener profiles, strengthen whole silo body structure, make silo stand well even under extreme environments. All the stiffeners are totally galvanized, ensure no rusting over long time.

3.Wind Ring

Wind rings are used to increase the strength of silo, for tall silos or those silo location with strong wind, the wind rings can effectively strengthen the silo bearing, assure silo solid and safety.

4.High Strength Bolts

DINGBAO use 8.8/10.9 grade high strength galvanized boltes, paired with nuts, sealing washers,cooperatively use sealing gum between steel plates,ferfectly assure the silo sealing and solidity.

5.Silo Ladder

Silo inside and outside ladder and rest platforms are produced completely in modular form by painted or galvanized sheets. The silo external safety ladder with cages enables workers to reach roof safely.

6.Silo Bottom Secondary Waterproof

Use polymer waterproof material at the bottom to the secondary strengthen waterproof.Silo volume is the sum of silo roof, silo body. Capacity is calculated at 0.75tm3 bulk material density.
